Text Effects in Visual Basic 2008.. (Reflect)

Submitted by janobe on Thursday, May 1, 2014 - 11:32.

In this tutorial I will teach you how to put an effect in the text using Visual Basic 2008. In here, I use the reflected text for the effect. It reflects any kind of text that you will type at the bottom and you can also change its font size. Others may think that reflected text is just easy to do. But, they were wrong. You have to take a closer look at each codes and calculate everything to make it accurate. Let’s begin: Open Visual Basic 2008, create a new Windows Application and drag a PictureBox, a TextBox, a ComboBox and a NumericUpDown. It will look like this. First Form

Double click the Form, go to the solution explorer and click the view code. After that, create a sub procedure for the reflect effects.

Private Sub DrawReflectText()
        Dim text_size As SizeF
        Dim grafx As Graphics
        Dim back_brush As Brush = Brushes.Gray
        Dim fore_brush As Brush = Brushes.Black
        Dim Fnt As New Font("Microsoft Sans Serif", NumericUpDown1.Value, FontStyle.Regular)
        Dim my_state As GraphicsState 'STORE THE CURRENT STATE OF GRAPHICS
        Dim x_location, y_location As Single 'USED FOR THE LOCATION
        Dim text_height As Single

        'CREATE A GRAPHIC OBJECT IN THE PICTURE BOX
        grafx = PictureBox1.CreateGraphics()
        'CLEAR THE GRAPHIC OBJECT
        grafx.Clear(Color.White)

        'SIZE IS REQUIRED TO DRAW THE TEXT
        text_size = grafx.MeasureString(TextBox1.Text, Fnt)

        'ELIMINATE THE REDUNDANT CALCULATIONS AFTER THE LOCATIONS' ONCE GET
        x_location = (PictureBox1.Width - text_size.Width) / 2
        y_location = (PictureBox1.Height - text_size.Height) / 2

        'IN SCALING THE ENTIRE GRAPHIC OBJECTS, WE NEED TO REPOSITION THE ORIGIN OF
        'IT (0,0) TO THE (xLocation, yLocation) POINT.
        'IF NOT, WHEN YOU FLIP THE TEXT WITH A SCALING TRANSFORM,
        'IT WILL DRAW REFLECTED TEXT AT (xLocation, -yLocation)THAT IS OUTSITDE THE VIEWABLE AREA
        grafx.TranslateTransform(x_location, y_location)

        Dim line_ascent As Integer
        Dim line_spacing As Integer
        Dim line_height As Single

        'USE GETCELLASCENT TO CALCULATE THE HIEGHT ABOVE THE BASELINE.
        'SINCE IT RETURNS A DESIGN METRIC VALUE YOU HAVE TO CONVERT IT
        'INTO PIXELS AND SCALED FOR THE FONT SIZE.
        line_ascent = Fnt.FontFamily.GetCellAscent(Fnt.Style)
        line_spacing = Fnt.FontFamily.GetLineSpacing(Fnt.Style)
        line_height = Fnt.GetHeight(grafx)
        text_height = line_height * line_ascent / line_spacing

        'THIS REFLECTS OVER THE LOWEST PORTION OF THE TEXT.
        Dim line_descent As Integer 'REFLECT TO THE DESCENDING CHARACTERS
        line_descent = Fnt.FontFamily.GetCellDescent(Fnt.Style)
        text_height = line_height * (line_ascent + line_descent) / line_spacing


        'DRAW THE REFLECTED ONE FIRST TO DEMONSTRATE THE USE OF GRAPHICS STATE OBJECT.
        'A GRAPHICSSTATE OBJECT MAINTAINS THE GRAPHICS OBJECT.

        'GRAPHICSSTATE SAVE FIRST.
        my_state = grafx.Save()S

        'USE THE SCALETRANSFORM WITH A NEGATIVE VALUE TO DRAW THE REFLECTIION
        'AND USING -1 THE REFLECTED TEXT WILL NOT DISTORT.
        grafx.ScaleTransform(1, -1.0F) ' REFLECTING THE Y DIRECTION
        grafx.DrawString(TextBox1.Text, Fnt, back_brush, 0, -text_height)

        'BEFORE IT TRANFORM RESET THE GRAPHICS STATE
        grafx.Restore(my_state)

        'MAIN TEXT DRAWN.
        grafx.DrawString(TextBox1.Text, Fnt, fore_brush, 0, -text_height)

    End Sub

Then, create a sub procedure for the name of the effect. Clear and add the item in the ComboBox.

    Private Sub effectlist()
        With ComboBox1.Items
            .Clear()
            .Add("Reflect")
        End With
    End Sub

Then, create a sub procedure to draw the text.

    Private Sub draw_text()
        effectlist()
        If ComboBox1.SelectedItem Is Nothing Then
            ComboBox1.SelectedIndex = 0
        End If
        Select Case ComboBox1.SelectedItem.ToString()
            Case "Reflect"
                Draw_Reflect_Text()
        End Select
    End Sub

Lastly, create a sub procedure for the UIchange.

    Private Sub UIChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) _
        Handles TextBox1.TextChanged, NumericUpDown1.ValueChanged, PictureBox1.MouseHover
        If NumericUpDown1.Value = 0 Then
            NumericUpDown1.Value = 50
        End If
        draw_text()
    End Sub

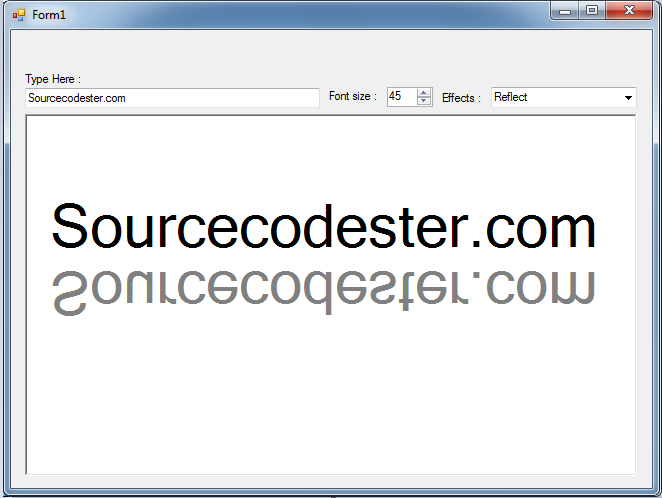

Ouput:
