How to Add DateTimePicker Column Using C#

Submitted by janobe on Friday, May 31, 2019 - 21:52.

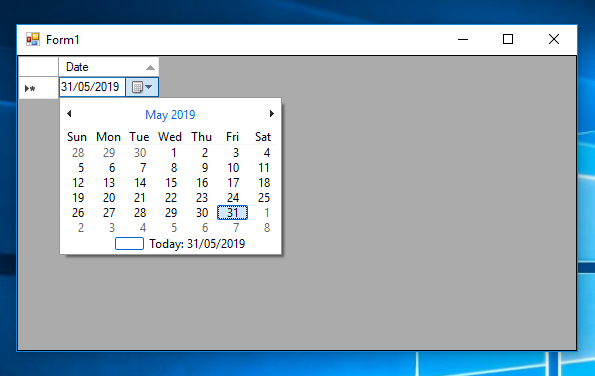

Here’s another tutorial that beginners in programming will find it very useful when they are writing codes. In this tutorial, I’m going to teach you how to add DateTimePicker Column using C#. This is just a simple method that can view the datetimepicker in a column and select the date that you need. Just follow the guide below and you will see how it works.

Creating Application

Step 1

Open Microsoft Visual Studio 2015 and create a new windows form application for c#. ps1

Step 2

Do the form just like shown below. ps2

Step 3

Press F7 to open the code editor. In the code editor, instantiate the object that is needed.


        DateTimePicker datePicker = new DateTimePicker();

Step 4

Click the DataGridView and go to the properties. In the properties, hit the event just like a lightning bolt. Scroll down and double click the event which is dtg_Date_CellClick to open the code editor. ps3

Step 5

In the code editor, write the following codes to create a DateTimePicker column when the cell is clicked.


        private void dtg_Date_CellClick(object sender, DataGridViewCellEventArgs e)
        {
            if (e.ColumnIndex == 0)
            {
                datePicker = new DateTimePicker();
                dtg_Date.Controls.Add(datePicker);
                datePicker.Format = DateTimePickerFormat.Short;

                Rectangle Rectangle = dtg_Date.GetCellDisplayRectangle(e.ColumnIndex, e.RowIndex, true);
                datePicker.Size = new Size(Rectangle.Width, Rectangle.Height);
                datePicker.Location = new Point(Rectangle.X, Rectangle.Y);

                datePicker.CloseUp += new EventHandler(datePicker_CloseUp);
                datePicker.TextChanged += new EventHandler(datePicker_OnTextChange);


                datePicker.Visible = true;
            }
        }

Step 6

Write the following codes for the textChange event of the DateTimePicker.


        private void datePicker_OnTextChange(object sender, EventArgs e)
        {

            dtg_Date.CurrentCell.Value = datePicker.Text.ToString();
        }

Step 7

Write the following codes for the closeUp event of the DateTimePicker.


        void datePicker_CloseUp(object sender, EventArgs e)
        {
            datePicker.Visible = false;
        }

The complete source code is included. You can download it and run it on your computer. For any questions about this article. You can contact me @ Email – [email protected] Mobile No. – 09305235027 – TNT Or feel free to comment below.
