The Simple Way to Navigate Records Based On ListView in C#

Submitted by janobe on Saturday, March 23, 2019 - 21:23.

This time, I will teach you how to navigate records based on ListView in C# and MySQL Database. This method has the ability to navigate records in the ListView. It also provides a next and previous button that allows the movement of records back and forth. In this way, you can control the data to be displayed in the listview.

Creating Application

Step 1

Open Microsoft Visual Studio 2015 and create a new windows form application for c#. ps1

Step 2

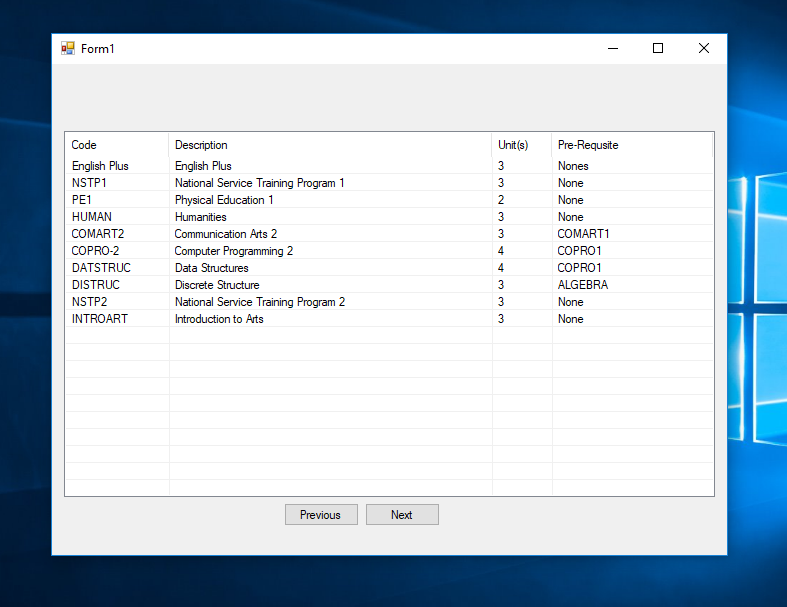

Do the form just like shown below. ps2

Step 3

Press F7 to open the code editor. In the code editor, add a namespace to access MySQL libraries


using MySql.Data.MySqlClient;

Step 4

Establish a connection between C# and MySQL database. After that, declare all the classes and variables that are needed.


        MySqlConnection con = new MySqlConnection("server=localhost;user id=root;password=;database=dbsubjects;sslMode=none");
        MySqlCommand cmd;
        MySqlDataAdapter da;
        DataTable dt;
        String sql;
        int maxrow;
        int inc_value;
        int resultPerPage = 10;
        int startResult;


Step 5

Create a method for retrieving single data in the database.


        private void loadSingleResult(String sql)
        {
            try
            {
                con.Open();

                cmd = new MySqlCommand();
                da = new MySqlDataAdapter();
                dt = new DataTable();

                cmd.Connection = con;
                cmd.CommandText = sql;
                da.SelectCommand = cmd;
                da.Fill(dt);
                maxrow = dt.Rows.Count - 1;
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
            finally
            {
                con.Close();
                da.Dispose();
            }

        }


Step 6

Create a method for retrieving list of data in the database


        private void loadResultList(String sql, ListView lst)
        {
            try
            {
                con.Open();

                cmd = new MySqlCommand();
                da = new MySqlDataAdapter();
                dt = new DataTable();

                cmd.Connection = con;
                cmd.CommandText = sql;
                da.SelectCommand = cmd;
                da.Fill(dt);

                lst.Items.Clear();
                foreach (DataRow r in dt.Rows)
                {
                    var list = lst.Items.Add(r.Field<string>(1).ToString());
                    list.SubItems.Add(r.Field<string>(2).ToString());
                    list.SubItems.Add(r.Field<int>(3).ToString());
                    list.SubItems.Add(r.Field<string>(4).ToString());
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
            finally
            {
                con.Close();
                da.Dispose();
            }

        }

Step 7

Create a method for the next records.

        private void next_record()
        {

            if (inc_value != maxrow - 2)
            {
                inc_value = inc_value + 1;
                startResult = inc_value * resultPerPage;
            }
            else
            {
                if (inc_value == maxrow)
                {
                    return;
                }
            }
            sql = "Select * from subject limit " + startResult + "," + resultPerPage + "";
            loadResultList(sql, listView1);

        }

Step 8

Create a method for the previous records

        private void previous_record()
        {
            if (inc_value == 0)
            {
                return;
            }
            else if (inc_value > 0)
            {
                inc_value = inc_value - 1;
                startResult = inc_value * resultPerPage;
            }

            sql = "Select * from subject limit " + startResult + "," + resultPerPage + "";
            loadResultList(sql, listView1);

        }

Step 9

Write the following codes for retrieving and displaying data in the first load of the form.

        private void Form1_Load(object sender, EventArgs e)
        {
            sql = "Select * from subject";
            loadSingleResult(sql);

            sql = "Select * from subject limit 10";
            loadResultList(sql, listView1);
        }

Step 10

Write the following codes for the next button

        private void btn_next_Click(object sender, EventArgs e)
        {
            next_record();
        }

Step 11

Write the following codes for the previous button

        private void btn_previous_Click(object sender, EventArgs e)
        {
            previous_record();
        }

The complete source code is included you can download it and run it on your computer. For any questions about this article. You can contact me @ Email – [email protected] Mobile No. – 09305235027 – TNT Or feel free to comment below.
