How to Create a Reminder Tool in Visual Basic

Submitted by Yorkiebar on Thursday, October 10, 2013 - 05:26.

Language

Introduction: Welcome to a tutorial on how to create a reminder tool in Visual Basic. Steps of Creation: Step 1: First we want to create a form with; Button1 - to add a new reminder Label2 - to store the current time Textbox1 - to store the text of a new reminder Textbox2 - to store the time of a new reminder Step 2: Next we want to create some custom functions, the titles of each explain exactly what they do...

Private Function updateShowingTimer()
    Dim time As Date =TimeValue(Now)
    Label2.Text = time
End Function
Private Function checkExistings()
    If (ListBox1.Items.Count()) Then
        For Each l As String In ListBox1.Items
            Dim t As String() = l.Split(" Starts At ")
              Dim time As String = l.Substring(0, 9)
            Dim msg As String = l.Substring(19, l.Count() - 19)
            If (TimeValue(Now) = time) Then
                MsgBox(msg)
            End If
        Next
    End If
End Function
Private Function constaUpdate()
    Do While True
        updateShowingTimer()
        checkExistings()
        Threading.Thread.Sleep(1000)
    Loop
End Function
Private Function isRightTimeForamat(ByVal s As String)
    If (s.Contains(":")) Then
        Dim total As Integer = 0
        For Each c As Char In s
            If (c = ":") Then total += 1
        Next
        If (total = 2) Then
            Dim all As String() = s.Split(":")
            Dim isRight As Boolean = True
            For Each a As String In all
                If (Not a.Count() = 2) Then isRight = False
            Next
            If (isRight) Then
                Return True
            Else : Return False
            End If
        End If
    End If
    Return False
End Function

Step 3: On form load we want to disable CheckForIllegalCrossThreadCalls to avoid errors when trying to set the current time from a new thread, which we also create on form load, which deals with the secondly updating of the current time label.

Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
    CheckForIllegalCrossThreadCalls = False
    Dim trd As Threading.Thread = New Threading.Thread(AddressOf constaUpdate)
    trd.IsBackground = True
    trd.Start()
    updateShowingTimer()
End Sub

Step 4: Finally, we want to make the add new reminder button function. This is where our custom made functions come in to play...

Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
    If (isRightTimeForamat(TextBox2.Text)) Then
        If (Not TextBox1.Text = Nothing) Then
            ListBox1.Items.Add(TextBox2.Text & " Starts At " & TextBox1.Text)
        End If
    End If
End Sub

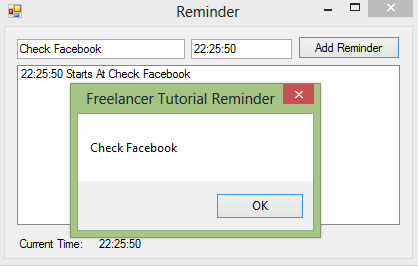

Project Complete! Below is the full source code and download to the project files.

Public Class Form1
    Private Function updateShowingTimer()
        Dim time As Date =TimeValue(Now)
        Label2.Text = time
    End Function
    Private Function checkExistings()
        If (ListBox1.Items.Count()) Then
            For Each l As String In ListBox1.Items
                Dim t As String() = l.Split(" Starts At ")
                Dim time As String = l.Substring(0, 9)
                Dim msg As String = l.Substring(19, l.Count() - 19)
                If (TimeValue(Now) = time) Then
                    MsgBox(msg)
                End If
            Next
        End If
    End Function
    Private Function constaUpdate()
        Do While True
            updateShowingTimer()
            checkExistings()
            Threading.Thread.Sleep(1000)
        Loop
    End Function
    Private Function isRightTimeForamat(ByVal s As String)
        If (s.Contains(":")) Then
            Dim total As Integer = 0
            For Each c As Char In s
                If (c = ":") Then total += 1
            Next
            If (total = 2) Then
                Dim all As String() = s.Split(":")
                Dim isRight As Boolean = True
                For Each a As String In all
                    If (Not a.Count() = 2) Then isRight = False
                Next
                If (isRight) Then
                    Return True
                Else : Return False
                End If
            End If
        End If
        Return False
    End Function
    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        CheckForIllegalCrossThreadCalls = False
        Dim trd As Threading.Thread = New Threading.Thread(AddressOf constaUpdate)
        trd.IsBackground = True
        trd.Start()
        updateShowingTimer()
    End Sub

    Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        If (isRightTimeForamat(TextBox2.Text)) Then
            If (Not TextBox1.Text = Nothing) Then
                ListBox1.Items.Add(TextBox2.Text & " Starts At " & TextBox1.Text)
            End If
        End If
    End Sub
End Class

Note: Due to the size or complexity of this submission, the author has submitted it as a .zip file to shorten your download time. After downloading it, you will need a program like Winzip to decompress it.

Virus note: All files are scanned once-a-day by SourceCodester.com for viruses, but new viruses come out every day, so no prevention program can catch 100% of them.

FOR YOUR OWN SAFETY, PLEASE:

1. Re-scan downloaded files using your personal virus checker before using it.
2. NEVER, EVER run compiled files (.exe's, .ocx's, .dll's etc.)--only run source code.

Comments

There's a problem when

There's a problem when switching textbox1 and 2 so that it may appear here: "ListBox1.Items.Add(TextBox2.Text & " Starts At " & TextBox1.Text)" Why is that? Program stops working but somehow it works like this
