Demonstrating Heap Sort in C#

Submitted by janobe on Monday, December 10, 2018 - 22:10.
Now, let’s learn how to demonstrate heap sort program in C#. But, before anything else let’s know what heapsort is? Here’s a short definition of it, heapsort is a comparison-based sorting algorithm that uses the heap data structure. In this program, the topmost item (the largest) is removed first and stored in an array. Then, it is replaced by the rightmost leaf and re-established the heap. The same process is repeated until there are no more items left in the heap and the array is sorted. Let’s begin:

Creating Application

Step 1

Open Microsoft Visual Studio 2015 and create a new windows form application in c#. psFormSort

Step 2

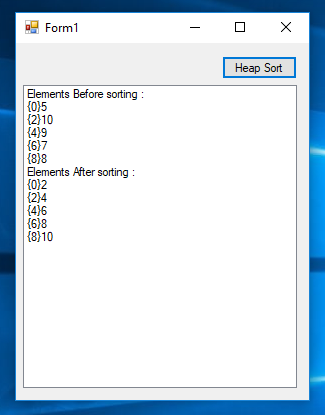

Do the form just like shown below. sortingform

Step 3

Create a method for the heap sort.
  1.         int[] numbers = { 2, 5, 1, 10, 6, 9, 3, 7, 4, 8 };
  2.         public void heapsort()
  3.         {
  4.             int i, c;
  5.             for (i = 5; i >= 0; i--)
  6.             {
  7.                 adjust(i, 9);
  8.             }
  9.             for (i = 8; i >= 0; i--)
  10.             {
  11.                 c= numbers[i + 1];
  12.                 numbers[i + 1] = numbers[0];
  13.                 numbers[0] = c;
  14.                 adjust(0, i);
  15.             }
  16.         }
  17.         private void adjust(int i, int n)
  18.         {
  19.             int a, b;
  20.             try
  21.             {
  22.                 a = numbers[i];
  23.                 b = 2 * i;
  24.                 while (b <= n)
  25.                 {
  26.                     if (b < n && numbers[b] < numbers[b + 1])
  27.                         b++;
  28.                     if (a >= numbers[b])
  29.                         break;
  30.                     numbers[b / 2] = numbers[b];
  31.                     b *= 2;
  32.                 }
  33.                 numbers[b / 2] = a;
  34.             }
  35.             catch (IndexOutOfRangeException e)
  36.             {
  37.                 listBox1.Items.Add("Array Out of Bounds " + e);
  38.             }
  39.         }
  40.         public void display()
  41.         {
  42.             for (int i = 0; i < 10; i++)
  43.             {
  44.                listBox1.Items.Add("{"+ i++ + "}" + numbers[i]);
  45.             }
  46.
  47.         }

Step 4

Double click the button and call the method that you have created for the heap sort in the click event handler of the button to execute when the button is click.
  1.             listBox1.Items.Clear();
  2.             listBox1.Items.Add("Array Elements Before sorting : ");
  3.             display();
  4.             heapsort();
  5.             listBox1.Items.Add("Array Elements After sorting : ");
  6.             display();
For any questions about this article. You can contact me @ Email – [email protected] Mobile No. – 09305235027 – TNT Or feel free to comment below.
