How to Fill and Get the Value Member of a ListBox in Visual Basic 2008 and MS Access Database

Submitted by janobe on Monday, August 4, 2014 - 21:08.

This time, I’m going to teach you how to fill and get the value member of a ListBox by using Visual Basic 2008 and MS Access Database. With this tutorial, you can fill the data to the ListBox that came from the Database and get its Id by clicking the name that shows in the ListBox. Let’s begin: Open the Visual Basic 2008 and create a new Windows Form Application. Drag a button and a ListBox in the Form. Do the Form just like this. FillingData

Go to the Solution Explorer and click the View Code. FillingDataCodeView

In the View Code, declare all the classes and the variables that are needed.

  'Setting up the connection string
    Dim con As OleDb.OleDbConnection = New OleDb.OleDbConnection("Provider=Microsoft.ACE.OLEDB.12.0;Data Source=" _
                                                                & Application.StartupPath & "/member.accdb")
    'Represents as a set of data command and the
    'database connection the are used to fill and update the datasource
    Dim da As New OleDb.OleDbDataAdapter
    'Represents one table of the database
    Dim dt As New DataTable
    'A variable that holds the query
    Dim query As String = "SELECT * FROM tblmember"

Go back to the Design Views, double click the button and do this following code for filling the data in the ListBox.

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        'opening the connection
        con.Open()
        'Holds the data to be filled.
        da = New OleDb.OleDbDataAdapter(query, con)
        'Set a new table
        dt = New DataTable
        'Fill the data in the datatable
        da.Fill(dt)

        With ListBox1
            'Set the datasource of a Listbox
            .DataSource = dt
            'Set the Field to be displayed
            .DisplayMember = "membername"
            'Set the actual value of the items
            .ValueMember = "ID"
        End With
        con.Close()
    End Sub

After that, go back to the Design Views click the ListBox and go to the properties. Hit the Events and double-click the “Click” for the Events handler of a ListBox. FillingDataProperties

Do this following code for in the Click Event Handler of a ListBox.


Private Sub ListBox1_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles ListBox1.Click
        'The actual value of the items will be appear in the
        'messagebox everytime you click the listbox

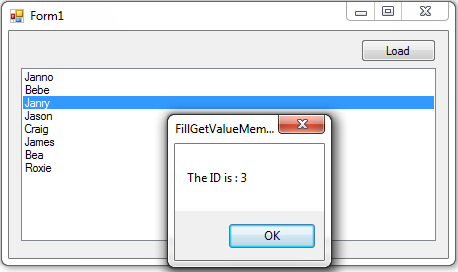

        MsgBox("The ID is : " & ListBox1.SelectedValue)
    End Sub
