Dialog Components in Visual Basic 2008

Submitted by janobe on Sunday, May 18, 2014 - 21:11.

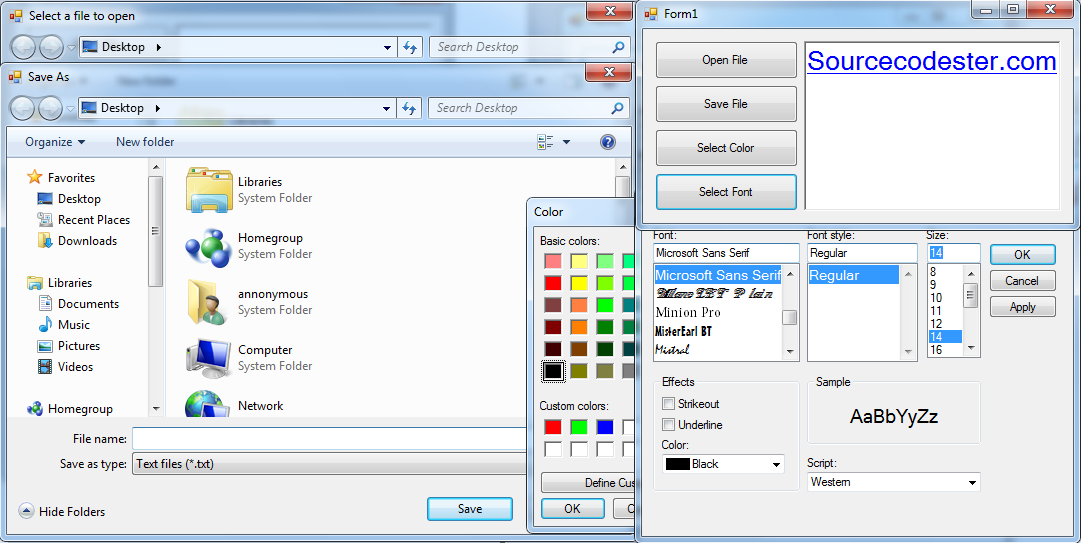

Today, I will teach you how to open a file, save a file, select a color and font of the corresponding text in the RichTextBox in Visual Basic 2008. With this, you can save the file, open the file that you have created and you can change the color and the font of the text in the RichTextBox. Let’s Begin: 1.Open Visual Studio. 2.Create a new Project. 3.Set the Form just like this. First Form Dialog

Go to the code view and do this following code for the “Open File” Button. This method serves to open the .txt file and the content will appear in the RichTextBox.

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Try
            With OpenFileDialog1

                'CHECK THE SELECTED FILE IF IT EXIST OTHERWISE THE DIALOG BOX WILL DISPLAY A WARNING.
                .CheckFileExists = True


                'CHECK THE SELECTED PATH IF IT EXIST OTHERWISE THE DIALOG BOX WILL DISPLAY A WARNING.
                .CheckPathExists = True


                'GET AND SET THE DEFAULT EXTENSION
                .DefaultExt = "txt"


                'RETURN THE FILE LINKED TO THE LNK FILE
                .DereferenceLinks = True

                'SET THE FILE NAME TO EMPTY
                .FileName = ""

                'FILTERING THE FILES
                .Filter = "Text files (*.txt)|*.txt|All files|*.*"

                'SET THIS FOR ONE FILE SELECTION ONLY.
                .Multiselect = False



                'SET THIS TO PUT THE CURRENT FOLDER BACK TO WHERE IT HAS STARTED.
                .RestoreDirectory = True

                'SET THE TITLE OF THE DIALOG BOX.
                .Title = "Select a file to open"

                'ACCEPT ONLY THE VALID WIN32 FILE NAMES.
                .ValidateNames = True

                If .ShowDialog = Windows.Forms.DialogResult.OK Then
                    Try
                        RichTextBox1.Text = My.Computer.FileSystem.ReadAllText(.FileName)
                    Catch fileException As Exception
                        Throw fileException
                    End Try
                End If

            End With
        Catch ex As Exception
            MsgBox(ex.Message, MsgBoxStyle.Exclamation, Me.Text)
        End Try
    End Sub

This code is for the “Save File” Button. This method serves to save the text that you have created in the RichTextBox.

Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Try
            With SaveFileDialog1
                 'IF THE USER NEGLECTS THE FILE ETENSION THEN, ADD THE DEFUALT EXTENSION.
                .AddExtension = True


                'CHECK IF THE OUTPUT PATH ACTUALLY EXISTS
                'BEFORE CREATING A NEW FILE AND BEFORE OVERWRITING.
                'THE FOLLOWING VALUES ARE IN ITS DEFUALT FORM.
                .CheckPathExists = True
                .CreatePrompt = False
                .OverwritePrompt = True
                .ValidateNames = True

                'GET AND SET THE DEFAULT EXTENSION
                .DefaultExt = "txt"

                'FILLTERING THE FILES THAT YOU HAVE SAVED.
                .Filter = "Text files (*.txt)|*.txt|" & "All files|*.*"
                .FilterIndex = 1

                If .ShowDialog() = Windows.Forms.DialogResult.OK Then
                    My.Computer.FileSystem.WriteAllText(.FileName, RichTextBox1.Text, False)
                End If

            End With
        Catch ex As Exception
            MsgBox(ex.Message, MsgBoxStyle.Exclamation, Me.Text)
        End Try
    End Sub

After that, do this following code for changing the color of the text in the RichTextBox.

Private Sub Button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.Click
        'SET THE RED, GREEN, AND BLUE IN THE CUSTOM COLORS SELECTION
        Static Custom_Colors() As Integer = {RGB(255, 0, 0), RGB(0, 255, 0), RGB(0, 0, 255)}

        Try
            With ColorDialog1

                'SET THE COLORS THAT YOU HAVE SELECTED TO MATCH
                'THE CURRENTLY COLORS THAT WAS USED IN THE RICHTEXTBOX.
                .Color = RichTextBox1.ForeColor

                'SET THE ARRAY VARIABLE THAT YOU HAVE SUPPLIED
                'AND FILL IT TO THE CUSTOM COLORS ON THE DIALOG BOX.
                .CustomColors = Custom_Colors


                'IT ALLOWS YOU TO CREATE CUSTOM COLORS.
                .AllowFullOpen = True


                'THE BASIC COLORS WILL DISPLAY.
                .AnyColor = True


                'THE DIALOG BOX WILL DISPLAY WITH THE CUSTOM COLOR SETTINGS, SIDE OPEN, AS WELL.
                .FullOpen = False


                'SOLID COLORS ARE ALLOWED.
                .SolidColorOnly = True

                If .ShowDialog() = Windows.Forms.DialogResult.OK Then
                    RichTextBox1.ForeColor = .Color
                    'STORE THE CUSTOM COLORS FOR FUTURE USE.
                    Custom_Colors = .CustomColors
                End If


                'RESET ALL THE COLORS IN THE DIALOG BOX.
                ColorDialog1.Reset()

            End With


        Catch ex As Exception
            MsgBox(ex.Message, MsgBoxStyle.Exclamation, Me.Text)
        End Try
    End Sub

Lastly, do this following code for changing the font of the text in the RichTetBox.

Private Sub Button4_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button4.Click
        Try
            With FontDialog1

                'SET THE DIALOG BOX TO MATCH THE FONT THAT YOU USED IN THE RICHTEXTBOX.
                .Font = RichTextBox1.Font
                'SET THE DEFAULT COLOR.
                .Color = RichTextBox1.ForeColor


                'THE CHOICES OF THE COLORS WILL APPEAR.
                .ShowColor = True


                'THE APPLY BUTTON APPEARS ON THE DIALOG BOX
                .ShowApply = True


                'SET THE EFFECTS TO BE SELECTED.
                .ShowEffects = True


                'DON'T ALLOW SIMULATION, VECTOR FONTS OR VERTICAL FONTS.
                ' THEN, LET THE USER CHANGE THE CHARACTER SET.
                .AllowScriptChange = True
                .AllowSimulations = False
                .AllowVectorFonts = False
                .AllowVerticalFonts = False


                'SET THE FIXED AND PROPORTIONAL FONTS.
                .FixedPitchOnly = False
                'ALLOW ONLY FONTS THAT EXIST.
                .FontMustExist = True
                'SET THE MAXIMUM SIZE SELECTABLE FONT SIZE
                .MaxSize = 48
                'SET THE MINIMUM SIZE SELECTABLE FONT SIZE
                .MinSize = 8

                'SET UP THE REQUESTED FONTS.
                If .ShowDialog = Windows.Forms.DialogResult.OK Then
                    RichTextBox1.Font = .Font
                End If

            End With
        Catch ex As Exception
            MsgBox(ex.Message, MsgBoxStyle.Exclamation, Me.Text)
        End Try
    End Sub
