Display Record in DataGridView Based on ComboBox Selected Value

Submitted by admin on Thursday, December 3, 2009 - 21:54.

In this tutorial I will teach you on how to display related record based on the selection value from a ComboBox.

The example displays a student’s subject in a DataGridView after a SelectedIndexChanged event of a ComboBox.

This tutorial assumes that you already know how to add a DataSet in your project.

The following are important steps in order to understand how I made this simple program.

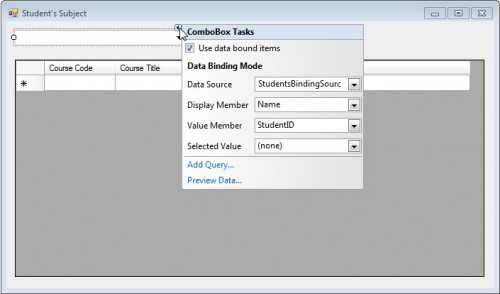

1. Bind a ComboBox

[inline:ComboBox_Data_Binding.jpg=Bind a ComboBox]

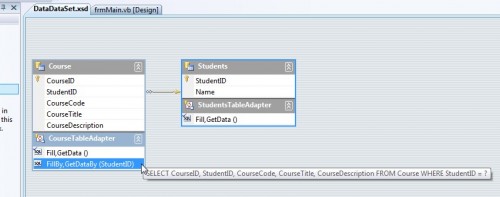

2. Add a query in the Course Table under DataSet designer

[inline:DataSet.jpg=Add a query in the Course Table under DataSet designer]

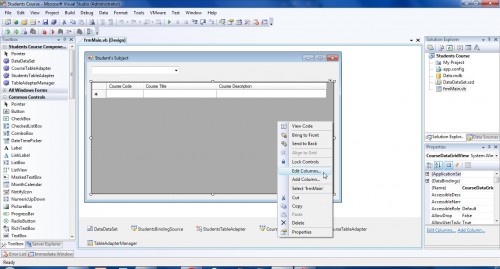

3. Edit DataGridView columns after binding from Data Source

[inline:Edit_Columns.jpg=Edit DataGridView columns after binding from Data Source]

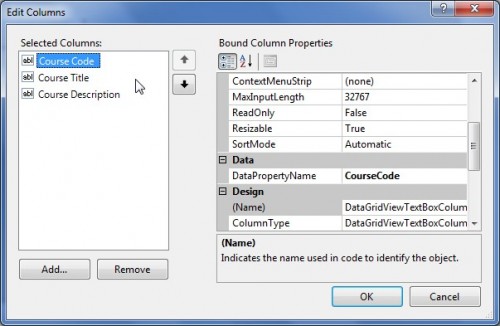

4. Select only the following field by removing unnecessary columns

[inline:Columns.jpg= remove unnecessary columns]

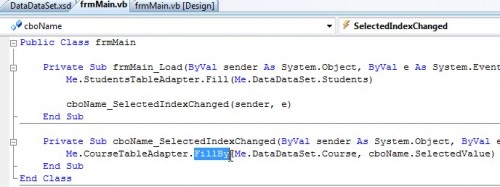

5. In the SelectedIndexChanged event of the ComboBox use the FillBy method instead of Fill method

[inline:FillBy.jpg=FillBy method]

As you can see in the DataSet designer there are two fill method in a Course table name Fill and FillBy. FillBy has a parameter named StudentID. This will tell our TableAdapter to filter the record using the FillBy method.

Comments

Sir Jay

Sir Jay How to convert .net to vb6?

re: Sir Jay

I don't have much time converting this to vb 6 for now.

it is not possible to convert

it is not possible to convert any dot net project in vb6.0

Display Record in DataGridView Based on ComboBox Selected Value

It is good to have this tutorial. But can you help me, how to display none in the combobox when it is loading, so that if the data is bigger the application can start quickly?

One of the approach if you

One of the approach if you have a lot of record to bind in a ComboBox is to filter the record based on the character that you have type in a combobox. This can be done in the Change event of a combobox.

One of the approach if you

Oh thanks for the suggestion. Can you give example? Just say I have four categories/items building, car, animal and electronic. I have not tried yet, but in my point of view, if the future we want to add some more categories/item, to the database, I think we would find difficulty. Don't you think so?

Sir Jay

I often find the member of this forum asking the programmer to convert their program to VB6 from the higher version. I think it is better if those who ask upgrade their software to higher version. You can get the Visual Studio 2008 by downloading from torrent or just buy it in the shop. I'm sure the price is not expensive because mostly they are pirated.

re: Sir Jay

Yes that's true. But some people is asking to downgrade the source code is due to the fact that their professor is still using VB 6.0 in their class. One reason is their computer may be cannot meet the specs of VB.NET. For now I prefer to work with VB.NET as it has a lot of changes that makes coding easier and faster.

re: Sir Jay

I think if is so, then they may give a try to REALbasic. I just this this software. It's good and almost similar to VB, yet more powerful. This software is cross-platform. The coding is simple and you can convert the VB code to this software too. Just try it.

Get value from database based on combox

sir can you plz help me in combox view how to show value in datagrid view my email id is ([email protected])

vb and oracle

Hello SIr, I want to develop a school management system using vb at front end and oracle as back end.Can u tell me some initial steps so that i could handle oracle without any problem? Note:I dont know very much about using oracle.Can I develop it by only using sql server 2000/2005?

sir jay

pls help us make a comuterized cashier system

vb .net

how to add the data grid values to a ms access table in vb.net

How to make design

Hi admin am beginner, and gusto ko sana pano gumawa ng design for online reservation. salamat po ng marami. God bless you.

Hé This is a great example

I downloaded it but when i run the program i get an error: A first chance exception of type 'System.InvalidOperationException' occurred in System.Data.dll Do you know what to do? And is it possible to edit the records and that the datasource is then updated? many thanks

convert dot net to vb

i can do that pls provide the vb code

Problem with second step

I am also trying to display a record based on combobox selection. I have the query started but can not get a WHERE statement to work. In Step 2 The WHERE statement says (StudentID = ?) how do I get this to work. I get a incorrect syntax error. Right now my datagridview shows every record entered and my combobox shows the correct Names I have in the view. Thanks anybody!

Is your problem resolved?

Bro, Could you plz tell what have you done to make your code work........if at all it was resolved..

Are you using MS Access

Are you using MS Access database? Because if you are using SQL Server then you have to change the parameter to something like: (StudentID = @StudentID

Space in the field name

Yes, I am using SQL Server and coding in C#. I have difficulty in building the query correct. It says " Unable to Parse the Query Text" here is the query: SELECT Primary_ID, Date, [Full Name], [Vehicle Make], [Vehicle Model], Gas_Filled, Mileage FROM Gasolinetable WHERE ([Full Name] = @Full Name) you might have noticed there is space between Full and Name... Any help would be greatly appreciated... Thank you.
