How to Create a Simple NotifyIcon in Visual Basic 2008

Submitted by janobe on Tuesday, May 13, 2014 - 10:55.

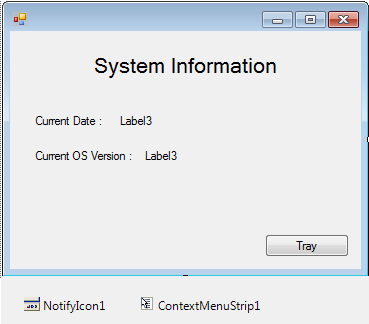

In this tutorial I will teach you how to create a simple NotifyIcon by using Visual Basic 2008. This NotifyIcon contains the system information that allows you to know the current date and the kind of operating system (OS) that you are using. So let’s begin: Open Visual Basic 2008 and create a new Windows Application. Drag a “ContextMenuStrip”, ”NotifyIcon”, ”Button” and “Label”. And do, the Form just like this. First Form

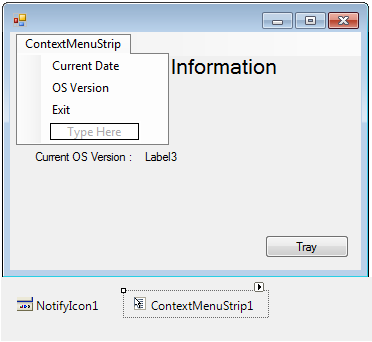

After that click the ContextMenuStrip and add the items on it which are the “Current Date”, “OS Version” and “Exit”. Then, it will look like this. Second Form

Double click the “Current Date” in the ContextMenuStrip and do this following code for getting the current date of the system.

  Private Sub CurrentDateToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles CurrentDateToolStripMenuItem.Click
        'GET THE CURRENT DATE
        MsgBox("Today's date is " & My.Computer.Clock.LocalTime.ToLongDateString & ".")
    End Sub

After that, do this following code for getting the current OS version.

    Private Sub OSVersionToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles OSVersionToolStripMenuItem.Click
        'GET THE CURRENT OPERATING SYSTEM INFORMATION
        MsgBox(My.Computer.Info.OSFullName & vbCrLf & "Version " & My.Computer.Info.OSVersion)
    End Sub

Then, do this following code for the Exit.

   Private Sub ExitToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ExitToolStripMenuItem.Click
        'HIDE THE ICON FIRST BEFORE YOU CLOSE THE APPLICATION
        'BECAUSE IT CANNOT BE SEEN ONCE THE APPLICATION IS CLOSED.
        NotifyIcon1.Visible = False
        Application.Exit()
    End Sub

After that, Do this following code for hiding the Form and showing the icon in the system tray.

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        'HIDE THE FORM AND VISIBLE THE NOTIFYICON SO THAT IT WIIL APPEAR IN THE SYSTEM TRAY
        Me.Hide()
        NotifyIcon1.Visible = True
        NotifyIcon1.Text = "System Information"
    End Sub

Do this following code for the doubleclick event of the NotifyIcon.

  Private Sub NotifyIcon1_MouseDoubleClick(ByVal sender As System.Object, ByVal e As System.Windows.Forms.MouseEventArgs) Handles NotifyIcon1.MouseDoubleClick
        'WHEN YOU DOUBLE CLICK THE ICON IT WILL DISAPPEAR AND THE FORM WILL BE SHOWN.
        NotifyIcon1.Visible = False
        Me.Show()
    End Sub

Lastly, do this following code on the first load for showing the current date and OS version in the Form.

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        'HIDING THE ICON ON THE FIRST LOAD OF THE FORM
        'SO THAT IT WILL NOT APPEAR IN THE SYSTEM TRAY
        NotifyIcon1.Visible = False

        'SETS THE CURRENT DATE AND OS VERSION IN THE LABEL
        lblCurtime.Text = "Today's date is " & My.Computer.Clock.LocalTime.ToLongDateString & "."
        lblCurOS.Text = My.Computer.Info.OSFullName & vbCrLf & "Version " & My.Computer.Info.OSVersion

    End Sub

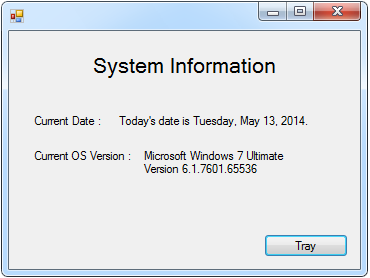

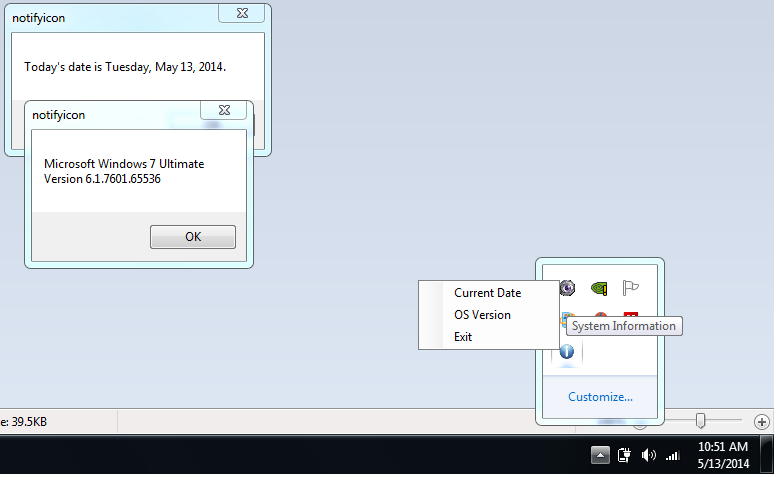

Output :
